CashCode FLS bill acceptor

In The Master Sky, you can buy the CashCode FLS bill acceptor.

The CashCode one™ is a truly universal banknote validator offered in a singular universal design regardless of the country, currency, mounting or protocol helping reduce logistic and inventory costs. This unit boasts value added product configurations and extensions such as sleep mode, a bulk note loader option and a 3000-note cashbox which is perfect for bill breaking machines.

Improve your operation and your customer’s first-hand experience with the excellent acceptance rate, security against counterfeits, field-proven reliability, and built in unique service support features.

Simplify retrofit projects. Supports a wide range of Gaming and Transport industry communication protocols

Exceptional Performance. 98% first-pass insertion rate on street-grade or new bills

Global Design, flexible options. One product for all countries and all currencies reduces need for various models in inventory

Expansive validation coverage. Utilizes four spectrums of validation: Optical, Dielectric, Inductive, and Ultra Violet

Excellent acceptance rate. Self-centering mechanism aligns bills or barcoded coupons of different widths—even when fed at an angle

Industry Format

Frontload, Downstacker

Dimensions (H x W x D mm)

300mm x 115mm x 235mm with 600 note cashbox

Note Validation

Note path width: 62mm - 85mm

Interfaces Supported

Bi-directional (RS232), Serial, Pulse, Opto-isolated

Operating Temperature

0°C to 50°C

Firmware Updates

USB Flash, Portable memory card, Network downloadable

Note Acceptance Speed

3 seconds

Weight

3.5 kgs

Compliance

CE, UL 756, IEC 60950-1, CB REPORT, FCC, ICES-003 & R
IEC 60068-2-32:1 meter operational

Power Requirements

12 V DC - 24 V DC

Acceptance Rate

98% or higher

Note Insertion

4-way

Barcode Ticket Insertion

4-way

Validation Sensors

Optical, Inductive, Dielectric, Ultraviolet

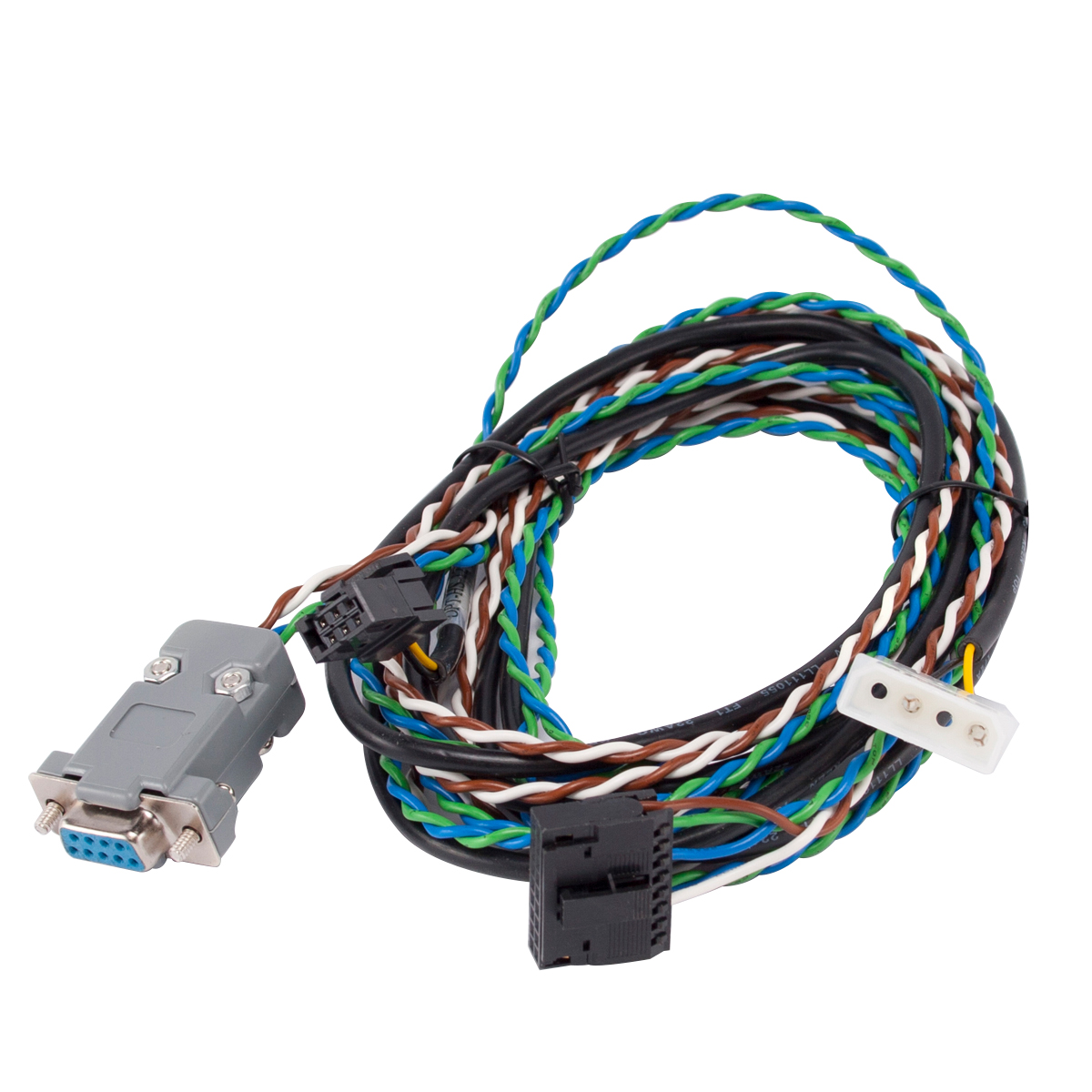

Cable for the Cashcode MFL (int. 1710) bill acceptor

In The Master Sky, you can buy a cable for the Cashcode MFL (int. 1710) bill acceptor.

A cable for the Cashcode MFL (int. 1710) bill acceptor.

Wires for the CashCode

In The Master Sky, you can buy wires for the CashCode bill acceptors.

Wires for the CashCode bill acceptors.

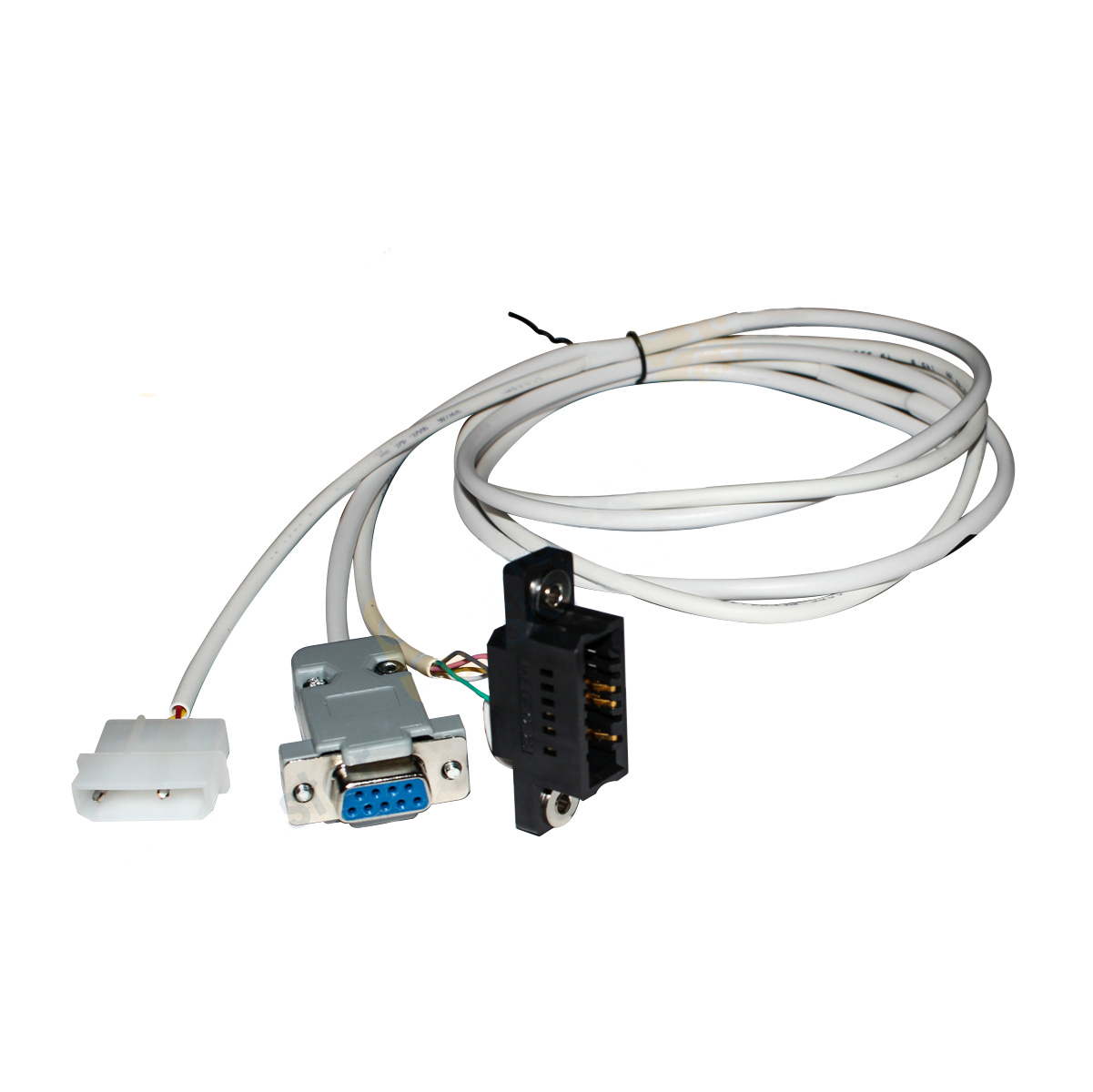

Cable for the Cashcode MFL (int. 2710) bill acceptor

In The Master Sky, you can buy a cable for the Cashcode MFL (int. 2710) bill acceptor.

A cable for the Cashcode MFL (int. 2710) bill acceptor.

The Cash Code Gx with a cassette for 1000 bills

In The Master Sky, you can buy the CashCode GX bill acceptor. Bill acceptor of a new generation, designed specifically for payment kiosks and self-service banking sector. The most advanced bill acceptor is built on a revolutionary platform that includes a set of the latest multiple sensors controlled by a powerful processor.

The CashCode GX is a bill acceptor of a new generation, designed specifically for payment kiosks and self-service banking sector. The most advanced bill acceptor is built on a revolutionary platform that includes a set of the latest multiple sensors controlled by a powerful processor. The new sensors are significantly more efficient in detecting counterfeit bills. This feature allows us to move to a whole new level of counterfeit bill detection (compared to any other similar validators of self-service devices on the market today).

Cassette for 1000 bills included.
Bill acceptance rate: 98+%.
Bill placement options: in all four directions
Length of recognizable bills: 120-177 mm
Width of recognizable bills: 60-82 mm
Bill processing speed: < 2 sec
Temporary depositing: one bill
Sensors: 5 types of validation sensors; bill pulling protection sensor; barcode scanning sensor (supports 2 submission directions).
Front panel options: standard panels in a width of 78 mm and 82 mm
Supported interfaces and protocols: serial interfaces - CCNET via RS232 or virtual via USB, ccTalk
Service interface: USB OTG with FLASH card
Software update: USB card or remote update

Working voltage: 12V+/-1V DC: 2.2 A
Working temperature: 0 °C to +60 °C
Dimensions without a cassette (Width x Height x Depth): 112 x 283 x 110 mm
Dimensions with cassettes (Width x Height x Depth):

1. capacity of 500 bills - 112 x 283 x 194 mm;

2. capacity of 1000 bills - 112 x 283 x 252 mm (with a handle);

3. capacity of 1500 bills - 112 x 285 x 322 mm (with a handle).

Weight without cassette: 1.5 kg

Weight of a cassette with a capacity of 1000 bills: 1.2 kg

Virtual COM Port drive

CashCode GX manual

Wires soldering scheme CashCode GX

CashCode GX user manual

GX connection via USB

The CashCode MSM bill acceptor

In The Master Sky, you can buy the CashCode MSM bill acceptor. The bill acceptor is a technically advanced, easy-to-use device for accepting, authenticating, and reliably storing the cash.

The CashCode MSM bill acceptor is a technically advanced, easy-to-use device for accepting, authenticating, and reliably storing the cash.

The BackLoad system with a self-adjusting width of the bill channel is a perfect way for accepting multiple currencies. Unlike models from the competitors that use bill inclined tracks, the BackLoad system with a self-adjusting width of the bill channel uses patented self-adjusting rails that automatically align with bills or coupons with bar codes of any width, even if they are inserted at an angle.

Features:

Validator is designed for bills from 62 to 77mm wide;
The recognition level is 96% and higher on the first submission;
Protection against acceptance of the bills attached to the thread, wire, fishing line, duct tape, and other fraud methods;
Automatic calibration of unique optical, inductive and capacitive sensors provides the highest level of bill authentication;
Acceptance and recognition of bills, no matter the side they are directed.

Working temperature range: from 0°C to +50°C at 12V or from -18°C to +60°C at 24V.
Recognition time (seconds): 3
Supply voltage: 12V DC: 2A; 24V AC or 20-42.5V DC: 1.0A.

CashCode MSM user manual

Technical specification

Soldering, programs, and description of the Cash Code

CashCode NET Interface

THE FIRMWARE CARD (FOR THE CASH CODE)

In The Master Sky, you can buy the firmware card for the CashCode bill acceptors.

Memory stick for firmware updates on the CashCode bill acceptor (MSM, MVU, MFL).

The card can hold 100 firmware versions (licenses).

The Cash Code MFL stacker for 1000 bills

In The Master Sky, you can buy a cassette for the Cash Code MFL bill acceptor.

Stacker (metal) for the Cash Code MFL bill acceptor. With a possibility of installing the lock.

Capacity: 1000 bills

Cassette capacity: 1000 bills

The CashCode MSM stacker for 1000 bills

In The Master Sky, you can buy a cassette for the CashCode MSM bill acceptor. A new clamping mechanism allows you to increase the capacity.

A stacker (metal) for the CashCode MSM bill acceptor. A new clamping mechanism allows you to increase the capacity. It has a lock and a possibility of sealing.

Capacity: 1000 bills

Cassette capacity: 1000 bills
